Esprit 540

Air-ducting pellet insert

Pellet insert, ventilated and ductable with air flow that can be directed as desired, fitted with a self-cleaning burner with up to 500 hours NON-STOP operation. Concealed crystal glass pellet loading drawer, silk screened glass, cast iron combustion chamber and firebox door, tube heat exchanger, easy routine and extraordinary cleaning, provision for Wi-Fi technology.
Heatable area
95 .
  • Black

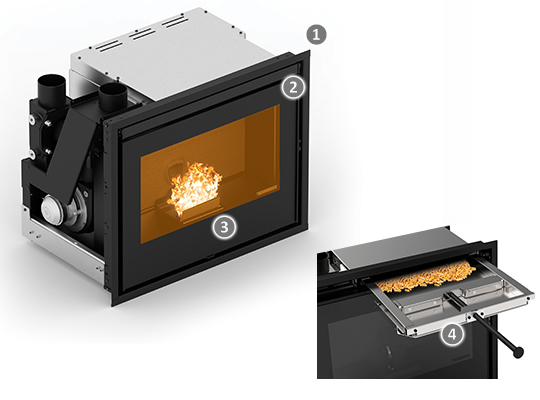

1 - Control for directing the air flow from the front to the ducting outlet
2 - Pellet loading drawer
3 - Pelletpower® patented self-cleaning burner
4 - Pellet loading drawer

Every uniti s tested for one hour in the factory Our products don’t incur additional cost for adjustments or testing Simplified cleaning system Heat exchanger Thermocore® External rotor room fan is guaranteed for 4 years Crono_36x36 elevati_spessori_36x36 only 36 decibels of noise Thermosilent system Air ducting product Mechanical-safety-devices External primary air input Pelletpower® - Patented burner fiamma emozionale Madaly




VIDEO


Advanced cleaning PELLETPOWER®

The new, more precise and refined construction technique guarantees safety and emissions under control. With Pelletpower the ashes are removed at the sides and collected in the drawer, the burner ensures constant efficiency without interruption and no waste of fuel. Even more advanced and industrialized thanks to the Advanced Cleaning technology, built in super resistant Incoloy 800HT alloy, which can be inspected and removed by the user.


Dimensions
  • Esprit-540_2024
Technical data
DIMENSIONS (HxWxD)    534x665x450
WEIGHT (kg)    103
HEATABLE AREA (m²)    95
EFFICIENCY UP TO MAX (%)    94,1%
ENERGY CLASS    A+
POWER TO THE HEART (kW)    2,8 - 11,3
RATED POWER (kW)    2,6 - 10,5
POWER TO THE WATER (kW)     -
RADIATION (kW)     -
HOURLY PELLET CONSUMPTION (kg/h)    0,6 - 2,34
WOOD HOURLY CONSUMPTION (kg/h)V     -
PELLET HOPPER CAPACITY (kg)    12,5
WARM AIR DUCTING    SI
MAXIMUM SINGLE DUCTING OUTLET (m)    16,00
PATENTED BURNER PELLETPOWER®    SI
ROMM VENTILATION    SI
PRIMARY AIR FROM OUTSIDE    SI
CO EMISSIONS (mg/m³; 13% di O2)    92
CO EMISSIONS (mg/m³; 10% di O2)    -
DUST EMISSIONS (mg/m³; 13% di O2)    13
DUST EMISSIONS (mg/m³; 10% di O2)    -
SILENCE(dB)    36,00
REMOTE CONTROL    -
RADIO CONTROL WITH ROOM TEMPERATURE THERMOSTAT    -
WEEKLY PROGRAMMER (3 DAILY LIGHTING)    SI
SMART INFO FUNCTION    SI
SYSTEM CIRCULATING PUMP    -
EXPANSION TANK    -
OVER PRESSURE VALVE    SI
FLUE GASEXHAUST DIAMETER (mm)    80
MIN. FLUE DRAUGHT PRESSURE (Pa)    -10
ELECTRIC CONSUMPTION (Watt)    70-270
HIGH TEMPERATURE SAFETY THERMOSTAT    SI
Downloadable docs
Energy Label_Esprit 540
Dop_Esprit 540
Product Fiche_Esprit 490-540-600
EU Declaration of Conformity_Esprit 490-540-600
Report CE_Esprit 490-540-600
Report Ambientale_Esprit 490-540-600
Report Conto Termico_Esprit 490-540-600
Manuale Esprit 490 -540 - 600_ENG
