1 - Programmable control screen
2 - Sliding access for pellet loading
3 - Precious soapstone
4 - Screen-printed ceramic glass and cast iron firebox door
Dorica idra 14 stone
Pellet Thermostove
Pellet stove with flowing and joined lines, it is surprising at first sight for its elegant architecture inspired by the classics. Equipped with the motorised fan technology PELLETPOWER® (Idra model) heat exchanger THERMOCORE® and simplified cleaning system EASY CLEANING. Available in versions, Silent, Air, Plus and Idra.
Heatable area
118 m².
118 m².
OPTIONAL ACCESSORIES

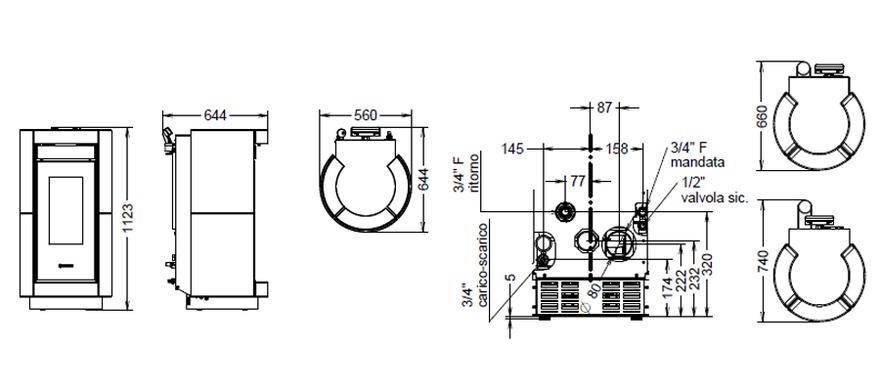

- Dimensions
-
-
- Technical data
-
DIMENSIONS (HXWXD) 1119x560x644WEIGHT (kg) 182,7HEATABLE AREA (m²)*a*c 118EFFICIENCY UP TO MAX (%)*a 96,7%ENERGY CLASS A+POWER TO THE HEART (kW)*a 5,3 - 13,7RATED POWER (kW)*a 5,1 - 13,1POWER TO THE WATER (kW)*a 3,8 - 10,9RADIATION (kW)*a 1,3 - 2,2HOURLY PELLET CONSUMPTION (kg/h)*a 1,1 - 2,8WOOD HOURLY CONSUMPTION (kg/h)*a -PELLET HOPPER CAPACITY (kg)*a 19,0WARM AIR DUCTING -MAXIMUM SINGLE DUCTING OUTLET (m) -PATENTED BURNER PELLETPOWER® SIROOM VENTILATION -PRIMARY AIR FROM OUTSIDE SICO EMISSIONS (mg/m³; 13% of O2)*a 23,0CO EMISSIONS (mg/m³; 10% of O2)*a -DUST EMISSIONS (mg/m³; 13% of O2)*a 14,0DUST EMISSIONS (mg/m³; 10% of O2)*a -SILENCE (dB) 36REMOTE CONTROL -RADIO CONTROL WITH ROOM TEMPERATURE THERMOSTAT -WEEKLY PROGRAMMER (3 DAILY LIGHTING) SI«SMART INFO» FUNCTION SISYSTEM CIRCULATING PUMP SIEXPANSION TANK SIOVER PRESSURE VALVE SIFLUE GASEXHAUST DIAMETER (mm) 100MIN. FLUE DRAUGHT PRESSURE (Pa) 10ELECTRIC CONSUMPTION (Watt) 35-340HIGH TEMPERATURE SAFETY THERMOSTAT SI*A Emissions and performance data may change according to the fuel used. The values of pellet products have been obtained by using certified fuel according to EN 14961-2 A1-A2 norm. Wood logs products values may vary according to the type and quality of the wood logs used.*B Provisional data under certification*C IMPORTANT: when calculating the volume of the “Heated area” some relevant aspects must be considered: insulation of the building (Energy Class), position of the heater, climatic area and more aspects that can affect the values of performance. Reported data have been calculated on the base of roof not higher than 3 mts.The manufacturer reserves the right to make changes without previous notice.
- Downloadable docs
