Melissa EVO Maiolica

Wood cookers

Free your imagination in the kitchen thanks to the ingenious «PANEPIZZA» patented device. Two ovens with different temperatures, 400°C on the upper oven, 350°C on the lower oven.
Heatable area
74 .
  • Bordeaux
  • Beige



1 - Smoke outlet Ø 130mm
2 - Smoothed cast iron cooking plate together with cast iron rings
3 - Starter
4 - Lateral handrail (optional)
5 - Cast iron frame
6 - Secondary air modulation devices
7 - Cast iron firebox door
8 - Cast iron firebox (HxWxD - 36x24x36 cm)
9 - Loading opening  (WxH - 21x27 cm)
10- Vintage Look handle
11 - Upper enamelled oven with lava stone base (HxWxD - 10x25x33 cm)
12 - Lower enamelled oven in lava stone with dripping-pan (HxWxD - 25x25x33,5 cm)
13 - Tools compartment

Flue outlet options: top - rear

Higher heat accumulation Simplified cleaning system Smoke by pass Madaly thermorossi_plus_forno_36x36 copia Pane Pizza


VIDEO


Panepizza® Technology

Free your imagination in the kitchen thanks to the ingenious «PANEPIZZA» patented device. A single large door encloses two independent ovens: manage as much heat as you want, the upper oven is able to exploit higher temperatures thanks to a dedicated smoke path, 400°C on the upper oven, 350°C on the lower oven. Both ovens have a soapstone base and a dedicated thermometer. Water, baking powder and flour and a little magic happens in the house. Three seemingly very simple ingredients able to create something incredibly special and fragrant, which unites the whole family.


MARGHERITA EVO

Wood fire cooker made of steel and cast iron with wide exchange surface and long forced smoke path, with a special stainless steel heat exchanger, combustion chamber in cast iron, controls for the regulation of primary, secondary and tertiary air, vintage look bakelite handles, shaking grate, starter, enamelled cast iron door with 750° resistant ceramic glass, top frame in enamelled cast iron, smooth cast iron cooking plate, double series of cast iron rings, frontal handrail, patented system PANEPIZZA to control the ovens temperatures, control for the regulation of the ovens temperatures, oven door with 2 thermometers, lower enamelled oven (capacity 35 l) with lava stone base, upper enamelled oven (capacity 14 l) with lava stone base, wood/tools storage pan, removable ash tray, enamelled cast iron feet. External coating kit in high quality majolica and cast iron.

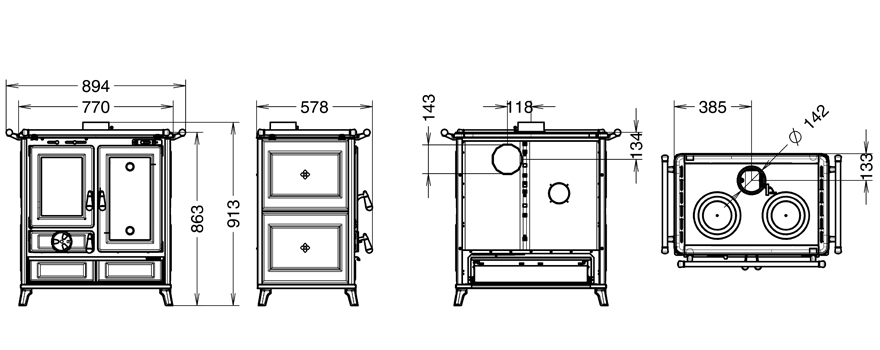

Dimensions
  • Melissa
Technical data
DIMENSIONS (HxWxD)    913x770x578
WEIGHT (kg)    177,00
HEATABLE AREA (m²)    74
EFFICIENCY UP TO MAX (%)    87,4%
ENERGY CLASS (SCALE A++/G)    A+
POWER TO THE HEART (kW)    9,4
RATED POWER (kW)    8,2
POWER TO THE WATER (kW)    -
RADIATION (kW)    8,2
HOURLY PELLET CONSUMPTION (kg/h)    -
WOOD HOURLY CONSUMPTION (kg/h)V    2,2
PELLET HOPPER CAPACITY (kg)
WARM AIR DUCTING    -
MAXIMUM SINGLE DUCTING OUTLET (m)    -
PATENTED BURNER PELLETPOWER®
ROMM VENTILATION    -
PRIMARY AIR FROM OUTSIDE    -
CO EMISSIONS (mg/m³; 13% di O2)    324
CO EMISSIONS (mg/m³; 10% di O2)
DUST EMISSIONS (mg/m³; 13% di O2)    12,0
DUST EMISSIONS (mg/m³; 10% di O2)
SILENCE(dB)    -
REMOTE CONTROL    -
RADIO CONTROL WITH ROOM TEMPERATURE THERMOSTAT    -
WEEKLY PROGRAMMER (3 DAILY LIGHTING)    -
SMART INFO FUNCTION    -
SYSTEM CIRCULATING PUMP    -
EXPANSION TANK    -
OVER PRESSURE VALVE    -
FLUE GASEXHAUST DIAMETER (mm)    130
MIN. FLUE DRAUGHT PRESSURE (Pa)    12
ELECTRIC CONSUMPTION (Watt)    -
HIGH TEMPERATURE SAFETY THERMOSTAT    -
